Business Site Introduction
Be a customer’s reliable partner with superior products and the thorough quality control.
Plant #2 - Extrusion

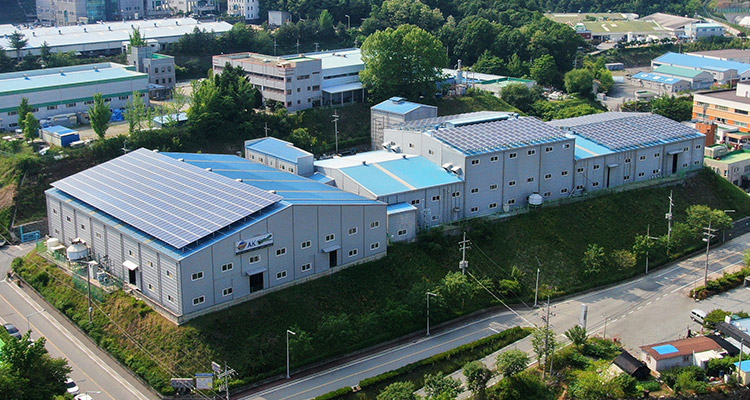

Plant #2 panorama
Extrusion
- Site area
- 7,502㎡
- Floor space
- 3,570.45㎡

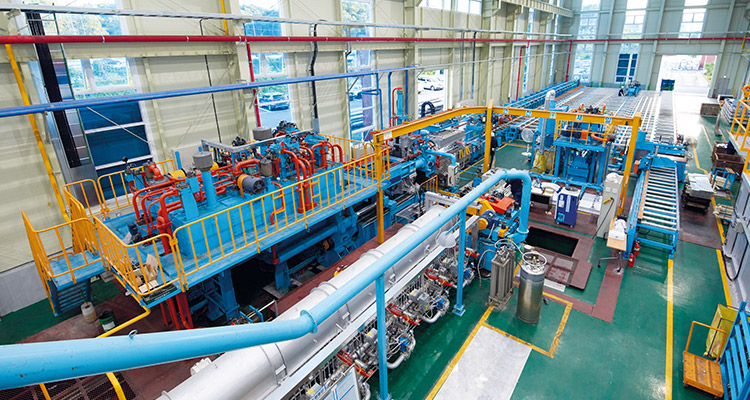

Plant #2 inner part1
Extrusion
- Site area
- 7,502㎡
- Floor space
- 3,570.45㎡
Plant #2 inner part2
Extrusion
- Site area
- 7,502㎡
- Floor space
- 3,570.45㎡
Plant #2 inner part3
Extrusion
- Site area
- 7,502㎡
- Floor space
- 3,570.45㎡
Extrusion Facility Status
| - | Maker | Type | Billet | Power | Product | |
|---|---|---|---|---|---|---|
| Alloy | Size | |||||
| PRESS CAPACITY |
SMS | Direct | 13inch | 4,000Ton | Soft Alloy | Min. Ø 85 ~ Max.Ø 303 |
| Hard Alloy | Min. Ø 75 ~ Max.Ø 281 | |||||
| UBE | 8inch | 2,600Ton | Soft Alloy | Min. Ø 40 ~ Max.Ø 80 | ||
| Hard Alloy | N/A | |||||
| Domestic | Double action |
8inch | 2,600Ton | Soft Alloy | Min. Ø 40 ~ Max.Ø 80 | |
| Hard Alloy | Min. Ø 40 ~ Max.Ø 75 | |||||
| STRETCHER CAPACITY |
Domestic | - | - | 300Ton | Soft Alloy | Max.Ø 150 |
| Hard Alloy | Max.Ø 125 | |||||
| 100Ton | Soft Alloy | Max.Ø 90 | ||||
| Hard Alloy | Max.Ø 70 | |||||
| 150Ton | Soft Alloy | Max.Ø 115 | ||||
| Hard Alloy | Max.Ø 85 | |||||
| AGING FURNACE | SIZE (W x H x L, mm) | TON | TYPE | QUANTITY |
|---|---|---|---|---|
| 2,000 X 3,400 X 20,000 | 20 | BATCH | 1 | |
| 2,000 X 3,400 X 15,000 | 15 |
| SOLUTION HEATING FURNACE | SIZE (D x L, mm) | TON | TYPE | QUANTITY |
|---|---|---|---|---|
| 1,100 x 4,000 | 2 | VERTICAL | 1 |
Extrusion Processing
-
Billet Preheat
Billet preheat process to improve the extrudability
-
Extrusion / Extrusion Output
Process to produce the products having certain profile such as bar, material with certain shape, tube material, etc. by passing through the hole in the die when placing the billet in the container and pressurizing the billet with pushing ram
-
Cutting
Cut product
-
Vertical Solution
Heat treatment method that increases the strength by obtaining the supersaturated solid solution by heating until the aluminum alloy content become solid solution completely by cooling it rapidly.
-
Stretching
Process that stretches certain amount of product after extrusion or after heat treatment for the purpose of removing the residual stress, enhancing the strength, correcting the straightness, etc.
-
Aging
Age-hardening heat treatment / artificial aging treatment
Extrusion
Process to produce the products having certain profile such as bar, material with certain shape, tube material, etc. by passing through the hole in the die when placing the billet in the container and pressurizing the billet with pushing ram
